8m³ Mobile Water Desalination Plant Reverse Osmosis Plant /
Industrial Water Purification Equipment
Reverse Osmosis system brief introduction
RO performs a separation without a phase change. Thus, the energy
requirements are low.RO systems are compact, and space requirements
are less than with other desalting systems, e.g. distillation.
Reverse Osmosis System Working Principle
Reverse Osmosis works by using a high pressure pump to increase the
pressure on the salt side of the RO and force the water across the
semi-permeable RO membrane, leaving almost all (around 95% to 99%)
of dissolved salts behind in the reject stream.
Reverse Osmosis System Flow Chart
Raw water pump→ mechanical filter→ activated carbon filter→
sodium-ion exchanger→ precision filter→
high pressure pump →Reverse osmosis→ Ozone sterilizer (UV).
Customized size of the system
| Model | Productivity
(T/H) | Motor power
(KW) | Recovery rate
(%) | Outlet water conductivity
(μS/CM) | Raw water conductivity
(μS/CM) |
| CK-RO-500L | 0.5 | 1.5 | 50 | ≤10 | ≤300 |
| CK-RO-1000L | 1 | 2.2 | 50 | ≤10 | ≤300 |
| CK-RO-2000L | 2 | 3 | 50-60 | ≤10 | ≤300 |
| CK-RO-3000L | 3 | 4.5 | 55-65 | ≤10 | ≤300 |
| CK-RO-4000L | 4 | 6.5 | 55-65 | ≤10 | ≤300 |
| CK-RO-5000L | 5 | 8 | 60-70 | ≤10 | ≤300 |
| CK-RO-10000L | 10 | 15 | 60-70 | ≤10 | ≤300 |
| CK-RO-20000L | 20 | 22 | 65-75 | ≤10 | ≤300 |
| CK-RO-30000L | 30 | 26 | 70-75 | ≤10 | ≤300 |
| CK-RO-50000L | 50 | 55 | 70-75 | ≤10 | ≤300
|

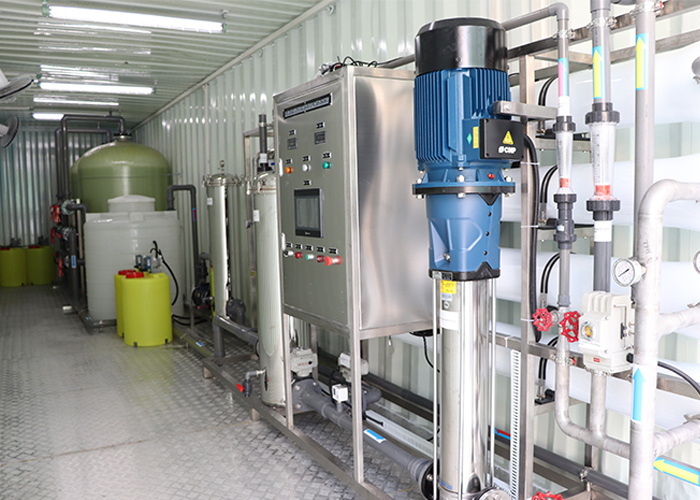

Details of the water purification equipment
The system is installed into a 40ft container,which is convenient
for on site installation.We will decorate the container
with followings:
A.Ventilation system: 1 air conditioner, 1 exhaust fan, 2 wall fans
B.Fire protection equipment: 3 fire extinguishers, 1 set of fire
alarms
C.Renovation instructions: white paint is sprayed in the container,
4 mm thick aluminum skid plate is placed on the container floor, 4
fluorescent lamps are installed on the ceiling, and 6 waterproof
sockets are installed on the container wall.

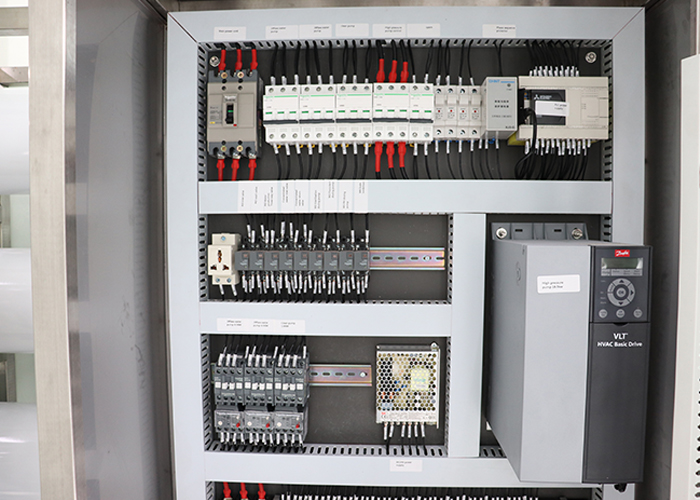

Electric Control System
The total control cabinet: Japan Mitsubishi PLC programmable
controller automatic control, Taiwan Wei Lun 10.2-inch large screen
true color man-machine interface touch screen, France Schneider
Electric components, RO membrane automatic washing, the original
water tank and pure water tank water level control automatically
stop , Low voltage, high voltage, overheating, overcurrent, phase
protection and alarm function, pre-installed remote monitoring
interface.

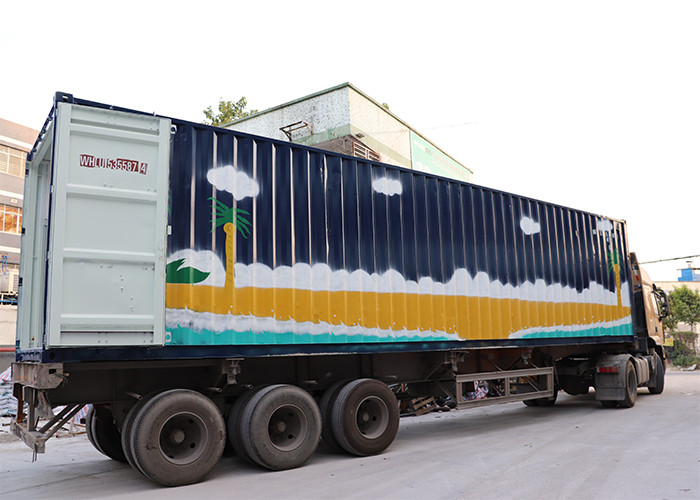

Shipping of the system
We provide various types technical support by providing e-mails,
whatsapp, wechat, teamviewer etc. online communication
tools.
